Why the Histogram Beats the LCD Screen
Camera LCD screens lie, and not maliciously, just structurally. Bright sunlight washes out the display and makes a correctly exposed image look underexposed. Dark environments and night shooting push the LCD's brightness up automatically, making an actually overexposed frame look fine on the back of the camera. Screen brightness settings, viewing angle, and ambient light all distort what you see, which means judging exposure by eye on a 3-inch screen in variable field conditions is unreliable in exactly the situations where getting exposure right matters most.
The histogram sidesteps all of that. It is a graph of the actual pixel data in the file, not a rendering that depends on screen brightness or ambient light. Learning to read it quickly is one of the highest-value skills a photographer can build, because it turns "does this look right" into "is this actually right," and the two questions have different answers more often than most photographers expect.
What a Histogram Actually Shows
A histogram is a bar chart of tonal values in an image. The horizontal axis runs from pure black on the far left to pure white on the far right, with every shade of gray in between. The vertical axis shows how many pixels in the image fall at each tonal value. A tall spike means a lot of pixels share that brightness level; a flat, empty stretch means very few pixels do.
That is the entire mechanism. There is no universal "correct" shape a histogram should have, despite how often that idea gets repeated. A histogram is a description of the tones actually present in a scene, and different scenes legitimately produce very different shapes:
- A snow scene or a bright, high-key portrait will naturally pile up toward the right side of the graph, and that is correct, not a sign of overexposure.
- A night scene, a low-key portrait, or a dark, moody landscape will naturally pile up toward the left, and that is also correct.
- An evenly lit scene with a mix of tones (a typical daylight landscape, for instance) tends to produce a spread-out, roughly centered histogram, but "tends to" is doing a lot of work in that sentence. Plenty of correctly exposed scenes do not look like that at all.
The goal is never to force a histogram into a specific bell-curve shape. The goal is to make sure the shape the scene actually produces is not being cut off at either edge.
Clipping: The One Thing That Actually Matters

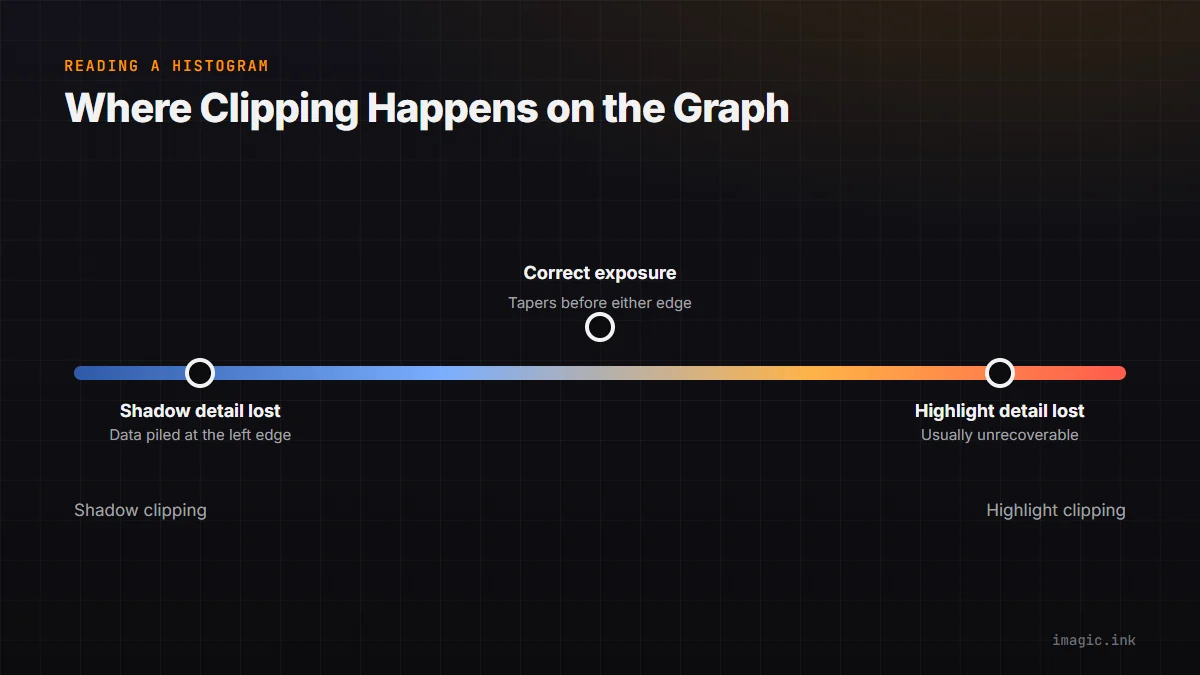

If there is a single concept worth internalizing from histogram reading, it is clipping. Clipping happens when tonal information piles up hard against the left edge (pure black, shadow detail lost) or the right edge (pure white, highlight detail lost) of the graph, with data appearing to be cut off rather than tapering naturally.
A histogram that tapers to nothing before it reaches the edge, on either side, means the full tonal range of that part of the scene was captured. A histogram with a spike jammed right up against the edge means information was lost in that direction, and no amount of editing afterward can recover detail that was never recorded. This is the practical reason to check a histogram in the field rather than relying on a preview: highlight clipping in particular is very easy to miss on an LCD screen but is unrecoverable once the shutter has closed on an overexposed frame.
Shadow clipping is generally more forgivable than highlight clipping, particularly when working from RAW files. Modern sensors retain a meaningful amount of recoverable shadow detail even in areas that look nearly black on the histogram, while completely blown highlights are, in most cases, permanently gone. When in doubt in the field, biasing exposure to protect highlights, even at the cost of slightly underexposed shadows, tends to preserve more usable data than the reverse.
RGB Histograms vs. the Luminance Histogram
Most cameras and editing software offer two related but distinct histogram views, and knowing the difference matters for catching a specific class of exposure problem.
| Histogram type | What it shows | What it catches that the other misses |
|---|---|---|
| Luminance | Overall brightness, combining all color channels into one value per pixel | General over or underexposure at a glance, but can miss single-channel clipping |
| RGB (per-channel) | Separate red, green, and blue histograms shown together or overlaid | A channel clipping on its own, such as a saturated red flower or a neon sign, while the combined luminance value still looks mid-range |
The per-channel view matters most for strongly saturated colors. A vivid red subject, for example, can clip the red channel completely (losing all detail and gradation in that color) while the combined luminance histogram still shows a perfectly reasonable overall exposure, because the green and blue channels are not clipped and the math averages out. Checking the RGB histogram specifically for scenes with strong, saturated color is the only reliable way to catch that failure mode before it becomes a problem in the edit.
Using the Histogram While Culling and Editing
The histogram is not just a field tool for checking exposure at capture time. It stays useful all the way through culling and RAW processing, arguably becoming more precise once you are looking at the actual decoded RAW data on a proper monitor rather than a camera LCD.
During culling, the histogram is a faster and more reliable way to compare near-identical frames than eyeballing them side by side, particularly for exposure-bracketed sequences where the whole point is that adjacent frames are deliberately over and underexposed relative to each other. Rather than relying purely on an automated quality score to rank a bracket, glancing at each frame's histogram shows exactly which one holds the highlight detail and which holds the shadow detail, which is often the actual deciding factor for which frame to keep or how to blend them.
During RAW processing, watching the histogram update live as exposure, highlights, and shadow sliders move is the most direct feedback available for whether an adjustment is introducing new clipping rather than fixing an exposure problem. imagic's RAW processing, powered by its own built-in RAW engine, shows a live histogram alongside the image as adjustments are made, which turns exposure correction from a guessing game based on how the preview looks into a precise read of exactly where the tonal data sits before and after each change.
Common Histogram Mistakes
A few habits undermine the usefulness of histogram reading even among photographers who know the basics:
- Chasing a centered bell curve on every image. As covered above, plenty of correctly exposed scenes should not look like a centered bell curve. Forcing a snow scene or a night shot into that shape with exposure adjustments actively makes the image wrong.
- Ignoring the RGB view for saturated scenes. Relying only on the luminance histogram misses single-channel clipping on strongly colored subjects, as described above.
- Treating a small amount of edge data as a crisis. A tiny sliver of pixels touching the edge, such as a small specular highlight on water or glass, is often not worth fighting. Direct reflections of a light source are supposed to be pure white in most cases; that is not the same failure mode as broad areas of sky or skin losing detail.
- Only checking the histogram once, at capture. The histogram is useful throughout the whole workflow: at capture to confirm the base exposure, during culling to compare bracket candidates, and during editing to catch clipping introduced by an aggressive adjustment.
The In-Camera Histogram Is Not Quite the RAW Data
One nuance worth knowing, because it explains a common source of confusion: the histogram displayed on the back of the camera immediately after a shot is generated from an embedded JPEG preview baked into the RAW file, not from the full RAW data itself. Camera manufacturers apply their own contrast curve and color rendering to generate that preview, and it usually clips slightly earlier than the underlying RAW sensor data actually does.
In practice this means a small amount of apparent highlight clipping on the in-camera histogram often is not real clipping in the RAW file at all; there is frequently a bit of genuine recoverable headroom above what the camera's preview histogram suggests. This is not a reason to ignore the in-camera histogram (it is still far more reliable than judging the LCD image by eye), but it is a reason to treat a small amount of edge data on the in-camera graph as a caution rather than an automatic reshoot, and to trust the histogram generated from the actual decoded RAW file once you are back at a proper editing screen. Different RAW formats (Canon's CR2 and CR3, Nikon's NEF, Sony's ARW, and the rest) each embed their own manufacturer-specific preview using slightly different rendering, which is one more reason the histogram inside your RAW processor is the more trustworthy read once you are past the field-shooting stage.
A Practical Histogram Workflow
Put together, a workflow that actually uses the histogram rather than treating it as a diagnostic afterthought looks like this: check the histogram immediately after the first frame of a new lighting setup, not just the LCD preview, to confirm the base exposure is not clipping highlights. For scenes with strong saturated color, glance at the RGB view specifically rather than trusting the combined luminance graph. During culling, use the histogram to break ties on bracketed or near-duplicate frames rather than guessing from the thumbnail. During editing, keep the live histogram visible while adjusting exposure and tone curves, watching for new clipping introduced by the adjustment itself rather than only checking the starting file.
None of this requires memorizing an ideal shape or a set of rules beyond the core idea: information pushed hard against either edge of the graph is information that has been lost, and everything else is a legitimate description of the scene as it actually was.
Reading exposure correctly at the histogram level pairs naturally with color decisions made later in the edit; a correctly exposed base file with no clipped highlights or shadows gives far more room to work with when it comes time for tonal and color adjustments, a relationship covered in more depth in a look at color grading versus color correction. It is also worth remembering that a strong exposure read at capture only helps if the file survives to get edited; a corrupted card or an accidental overwrite loses the histogram data along with everything else, which is the argument for a solid RAW file backup strategy as a companion habit rather than an afterthought. For more on getting the most out of RAW files generally, the imagic tips and workflow section covers related habits across the whole editing process.
Frequently asked questions
Should a histogram always look like a centered bell curve?
No. A centered, spread-out shape is common for evenly lit daylight scenes, but high-key scenes like snow or bright portraits correctly pile up toward the right, and low-key scenes like night photography or dark, moody portraits correctly pile up toward the left. The goal is avoiding clipping at either edge, not forcing a specific shape.
Is shadow clipping as bad as highlight clipping?
Generally no, especially when shooting RAW. Modern sensors retain more recoverable detail in shadow areas than in blown highlights, which are usually permanently lost once clipped. When exposure has to be biased one way in tricky light, protecting highlights at some cost to shadow detail usually preserves more usable information.
Why does my histogram look fine but a bright red or colorful subject still looks off?
The default luminance histogram combines all three color channels into one value per pixel, which can hide a single channel (commonly red, on strongly saturated subjects) clipping on its own. Checking the RGB or per-channel histogram view specifically for scenes with strong saturated color catches this failure mode that the combined view misses.
